As industrial manufacturing continues to evolve towards larger sizes and higher performance, large-size parts have become crucial components in heavy equipment, rail transportation, mold making, and energy equipment. However, many companies encounter real challenges when CNC machining these parts, such as difficulty in controlling machining accuracy, limited equipment compatibility, and cycle delays. So, how can CNC machining of large-size parts cope with the dual pressures of structural complexity and error control?

Multiple Factors Constraining the Machining Quality of Large-Size Parts

The most common problem in machining large-size parts is the accumulation of form and position errors caused by their large size span. For example, on gantry milling machines or horizontal machining centers, although the machining stroke can cover the workpiece length, the numerous support points, uneven tool stress, and thermal deformation caused by prolonged operation often lead to dimensional fluctuations and decreased surface accuracy.

Furthermore, because the structure of parts often contains complex grooves, curved surfaces, or multi-angle surfaces, traditional two-axis or three-axis machining is difficult to achieve in a single operation, requiring multiple clamping and face-changing processes. During clamping, inaccurate positioning or unreasonable fixture design can lead to machining misalignment or dimensional repetition errors, directly affecting the later assembly and overall functionality of the parts.

Another common problem is the long machining cycle. Large-sized parts are bulky and require high cutting volumes, placing high demands on machine tool stability, cooling systems, and operating procedures. Even slight deficiencies in equipment performance can result in low machining efficiency, frequent rework, and delivery delays, impacting the entire supply chain.

Technology and Management Go Hand in Hand to Overcome Bottlenecks in Large-Size Machining

Faced with these problems, more and more companies are seeking breakthroughs from multiple dimensions, including process planning, equipment configuration, and intelligent manufacturing. Firstly, at the equipment level, adopting gantry CNC machining centers, five-axis linkage systems, or customized large-stroke CNC platforms can provide sufficient space support and machining flexibility to meet the machining needs of ultra-long, ultra-wide, or heavy parts.

Secondly, in terms of process arrangement, more companies are introducing a "rough-medium-finish" segmented machining method and using machining simulation software to predict path interference and stress concentration areas in advance, improving machining controllability. During face-changing machining or segmented assembly, the use of reference hole positioning, combined fixtures, and high-precision repeatability systems effectively controls clamping errors.

Simultaneously, the addition of coordinate measuring machines (CMMs), laser scanning, and online measurement systems enables rapid feedback after each key process, allowing for real-time monitoring of machining quality, timely parameter adjustments, and prevention of escalation of problems.

Furthermore, some companies with large-size machining capabilities have built information management platforms centered on MES systems to achieve refined management of machining progress, process flow, material usage, and delivery schedules, further improving overall delivery efficiency and service response speed.

Market Demand Changes Drive Upgrades in Machining Services

Currently, large-size parts are not only found in traditional industrial equipment. With the development of industries such as new energy, aerospace, and new energy vehicles, the demand for high-precision, large-volume structural components is also increasing. For example, wind turbine main shaft seats, engineering machinery housings, and automotive body panel molds all require high-performance CNC equipment and mature process support.

This necessitates that machining companies not only solve technical problems but also improve their flexible manufacturing and customized response capabilities. The ability to efficiently complete large-volume, multi-specification orders, achieve modular collaboration on complex structures, and ensure consistency in long-lead-time parts will become crucial criteria for customers evaluating partners.

CNC machining of large-size parts is not only a challenge to equipment specifications but also a test of the overall coordination capabilities of the manufacturing system. Through technological accumulation, process optimization, and management upgrades, manufacturing enterprises are gradually building a capability system to handle complex structures and stringent requirements. Driven by ever-increasing industrial demand, those who can achieve more stable quality control and delivery assurance in large-size machining will gain broader development space in the high-end manufacturing field.

If you have future projects requiring CNC machining, please send your drawings to this email address for an evaluation and quote: info1@us.cjcncmachining.com

In CNC machining of metal parts, thin-walled structures (typically <3mm thick) are prone to deformation due to their low rigidity, leading to dimensional errors, substandard form and position accuracy, and even scrapping. These parts are widely used in aerospace, automotive, and electronics industries, and deformation during machining has always been a common challenge in production. This article, based on machining experience, systematically analyzes the main causes of deformation in the machining of thin-walled metal parts and provides targeted control techniques to help improve production yield.

I. Main Causes of Deformation in the Machining of Thin-Walled Metal Parts

Deformation of thin-walled metal parts is caused by a combination of factors, including material properties, clamping methods, cutting parameters, and process arrangement. Accurate identification of the inducing factors is crucial:

1. Influence of Material Properties and Initial Stress

Thin-walled parts made of non-ferrous metals such as aluminum alloys and copper alloys are inherently highly ductile and prone to plastic deformation during machining. Residual internal stress from the casting and rolling processes in the blanks is released after material removal during machining, leading to bending and warping of the parts. Thin-walled parts have small cross-sectional areas and low moments of inertia, making them less resistant to cutting and clamping forces; even slight external forces can cause deformation.

2. Deformation Caused by Improper Clamping Force

Excessive clamping force directly causes elastic deformation of the parts. Especially when clamping flat thin-walled parts with a vise, the clamping pressure can easily cause the parts to bulge in the middle and warp at both ends. Inappropriate clamping point selection, failing to avoid weak points, leads to localized stress concentration and localized deformation. Lack of auxiliary support causes the suspended parts of the parts to vibrate and deform under the action of cutting forces after clamping.

3. Deformation Caused by Cutting Force and Cutting Heat

Improper selection of cutting parameters, such as excessive feed rate or depth of cut, leads to a sudden increase in cutting force, causing displacement and deformation of the part. Cutting heat generated during high-speed cutting is conducted to the part surface, causing localized temperature increases. Uneven material expansion followed by cooling and contraction leads to thermal deformation. Tool wear or dulling of the cutting edge increases cutting resistance, exacerbating part vibration and deformation.

4. Inappropriate Machining Process Arrangement

Improper connection between roughing and finishing processes, such as directly finishing without releasing stress after roughing, results in residual stress causing deformation after finishing. Inappropriate cutting path planning, such as unidirectional cutting leading to concentrated stress on one side of the part, or failure to use symmetrical cutting methods, causes unbalanced deformation. Excessive material removal in a single operation causes a sudden and significant reduction in material, resulting in excessive stress release and accelerated part deformation.

II. Practical Control Techniques for Deformation in the Machining of Thin-Walled Metal Parts

To address the aforementioned causes of deformation, targeted measures can be taken in areas such as clamping optimization, parameter adjustment, process improvement, and stress control:

1. Optimize Clamping Methods to Reduce Clamping Deformation

Adopt flexible clamping schemes, using soft materials such as rubber pads or copper sheets to wrap the jaws, increasing the contact area, dispersing clamping force, and avoiding localized pressure damage and deformation; rationally select clamping points and support points, prioritizing clamping on parts with higher rigidity, and adding auxiliary supports (such as adjustable support pins or hydraulic jacks) for weaker parts; for flat thin-walled parts, vacuum adsorption clamping can be used, utilizing atmospheric pressure to evenly adsorb the part surface, avoiding localized stress caused by mechanical clamping, especially suitable for machining large-area thin-walled plates; for shaft-type thin-walled parts, expansion sleeve clamping can be used, using the elastic deformation of the expansion sleeve to evenly transmit clamping force, reducing damage and deformation to the workpiece.

2. Scientifically Set Cutting Parameters to Reduce Cutting Deformation

Select an appropriate cutting speed. When machining thin-walled parts of non-ferrous metals such as aluminum alloys, use a higher cutting speed (150-300 m/min) to reduce cutting force and heat generation. When machining thin-walled parts of high strength materials such as stainless steel, use medium-low speed cutting (80-150 m/min) to avoid excessive cutting force. Optimize feed rate and depth of cut, adopting a strategy of "small depth of cut, large feed rate" to reduce single-pass cutting force, while controlling the total allowable material removal to avoid removing too much material at once. Select appropriate cutting tools, using sharp carbide or diamond tools to reduce tool-workpiece friction and cutting resistance. The tool rake angle can be appropriately increased to reduce cutting force and minimize plastic deformation of the material.

3. Improve Machining Processes and Control Stress and Deformation

Adopt a "rough machining - aging treatment - finish machining" process route. After rough machining, remove most of the excess material, then perform natural aging or low-temperature aging treatment to release residual stress before finish machining. This avoids deformation during finish machining caused by stress release. Employ a symmetrical machining strategy. For example, when machining thin-walled sleeve-type parts, use symmetrical cutting at both ends and alternating machining of the inner and outer walls to ensure uniform stress distribution and reduce deformation. Optimize cutting paths. For planar machining, use bidirectional cutting instead of unidirectional cutting to reduce unilateral stress. For cavity machining, use helical entry and circular arc transition to avoid impact cutting forces caused by sudden turns. Reserve reasonable machining allowances. After rough machining, reserve 0.2-0.5mm of finish machining allowance to ensure that the deformation caused by rough machining can be corrected during finish machining, while avoiding excessively small allowances that cannot correct errors.

4. Control Cutting Heat and Reduce Thermal Deformation

Utilize cutting fluid effectively. Choose a cutting fluid with good cooling performance and spray it onto the cutting area through a high-pressure nozzle to promptly remove cutting heat and lower the surface temperature of the part. During machining, schedule appropriate pauses. For thin-walled parts requiring long-cycle machining, pause at regular intervals to allow the part to cool naturally and avoid deformation caused by heat accumulation. Avoid dry cutting at high speeds, as dry cutting causes a sharp increase in cutting heat, especially when machining non-ferrous metals, which can easily lead to tool sticking and thermal deformation. Dry cutting must be used in conjunction with cutting fluid.

5. Strengthen Process Monitoring and Post-Processing

Perform a trial cut before batch machining to check the deformation of the first part. Adjust the clamping method or cutting parameters based on the test results to ensure stable subsequent machining. Monitor the part's condition during machining through visual observation and sound assessment. If abnormal vibration is detected, adjust cutting parameters or check the tool condition promptly. After finishing, inspect the parts' dimensions. If slight deformation is found, correct it through methods such as cold pressing to ensure the parts meet design requirements.

Deformation control in CNC machining of thin-walled metal parts relies on "reducing external force interference, releasing internal stress, and controlling cutting heat accumulation." By optimizing clamping methods, scientifically setting cutting parameters, and improving machining processes, the probability of deformation can be effectively reduced, and the part's pass rate can be improved. In actual production, control techniques must be flexibly adjusted based on the specific structure of the part, material properties, and machining equipment. Simultaneously, experience in machining different types of thin-walled parts should be accumulated to develop targeted machining solutions, ensuring high-precision machining of thin-walled parts.

If you have future projects requiring aluminum alloy CNC machining, please send your drawings to this email address for an evaluation and quote: info1@us.cjcncmachining.com

5-axis CNC machine tools require high stability to ensure accuracy and repeatability during machining. The machine tool structure should be robust and equipped with effective vibration damping measures.

The tool change point of a 5-axis CNC machining center refers to the position of the tool turret during automatic indexing. For most 5-axis machining centers, the tool change point is arbitrary; it should be selected where the tool does not interfere with the workpiece or fixture during the tool change process.

However, some machining centers have a fixed tool change point. Typically, the tool change point is selected close to the machining center's reference point. These points may be chosen by using the second reference point of the 5-axis machining center as the tool change point.

If you have future projects requiring 5-axis CNC machining, please send your drawings to this email address for an evaluation and quote: info1@us.cjcncmachining.com

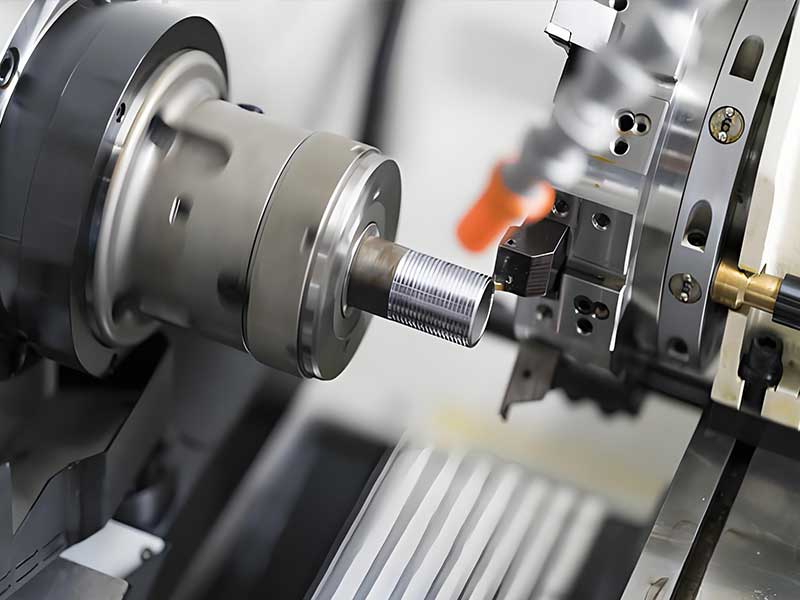

A CNC lathe is a computer-controlled machine used to machine parts from various materials. Compared to traditional lathes, CNC lathes offer higher automation and precision. They can perform automated operations such as cutting, drilling, and milling according to pre-set programs, achieving precise machining of parts.

The CNC lathe machining process typically includes the following steps:

1. Designing Part Drawings: First, detailed drawings of the part are created based on customer and design requirements. These drawings include the part's dimensions, shape, and machining requirements.

2. Writing Machining Programs: Based on the design drawings, machining programs for the CNC lathe are written. These programs include information such as the cutting path, cutting speed, and feed rate.

3. Clamping the Workpiece: The part to be machined is clamped on the CNC lathe and adjusted to ensure its position and angles are correct.

4. Machining the Part: The CNC lathe is started, and automated machining is performed according to the pre-set machining program. The CNC lathe will perform precise cutting, drilling, and milling operations according to the path and speed specified in the program.

5. Inspect Part Quality: After machining, the parts need to be inspected to ensure that their dimensions and shape meet the requirements. If problems are found, repair or remachining is required.

If you have future projects requiring CNC lathe machining, please send your drawings to this email address for an evaluation and quote: info1@us.cjcncmachining.com

Milling machines and lathes are the two most frequently used machine tools in machining plants. Let's analyze the differences between lathe machining and milling machine machining.

1. Milling machine machining, simply put: the cutter rotates while the workpiece does not.

It mainly uses a milling cutter to machine various surfaces on the workpiece. The rotation of the milling cutter is usually the main motion of the machining process, while the movement of the workpiece (and) the milling cutter is the feed motion. It can machine planes, grooves, and various curved surfaces, gears, etc. A milling machine is a machine tool that uses a milling cutter to mill the workpiece.

In addition to milling planes, grooves, gear teeth, threads, and splined shafts, milling machines can also machine relatively complex profiles. They are more efficient than planers and are widely used in mechanical manufacturing and repair departments.

Milling machines are versatile machine tools used to machine planes (horizontal and vertical), grooves, gears, splined shafts, sprockets, helical surfaces (threads, helical grooves), and various curved surfaces.

In practical machining, common machined parts include aluminum alloy housings, electronic product housings, prototype machining, custom-made non-standard heat sinks, valve bodies, panels, and various structural components. Currently, ordinary milling machines are less commonly used; most milling work is done by CNC machining centers.

2. Lathe machining, simply put, involves machining workpieces... The cutting tool is not rotating.

Lathe machining is a method of machining rotating workpieces using a cutting tool. Drills, reamers, taps, dies, and knurling tools can also be used on lathes for corresponding machining operations. Lathes are mainly used for machining shafts, discs, sleeves, and other rotating surfaces, and are the most widely used machine tools in machining factories and repair shops. Milling machines and drilling machines, which perform rotary machining, are derived from lathes.

If you have future projects requiring lathe-machined parts, please send your drawings to this email address for an evaluation and quote: info1@us.cjcncmachining.com

CNC machining is a manufacturing technology that uses computer-controlled machine tools to perform cutting, drilling, milling, turning, grinding, and other machining operations to manufacture various parts and components. CNC stands for Computer Numerical Control, an automated machining method that uses digital control instructions to precisely control the machining process, achieving high-precision and high-efficiency machining.

CNC machining has a very wide range of applications. From aircraft parts, automotive parts, ship parts, artificial bones, and medical devices to various industrial machinery and even entertainment equipment, CNC machining technology can be applied. Because computer-controlled machining is characterized by high efficiency, high precision, high quality, and high stability, CNC machining is increasingly widely used in the manufacturing industry.

The CNC machining process involves several steps. First, CAD drawings are designed and converted into digital G-code. Then, the G-code is transmitted to the CNC machine controller, and machining parameters are set. During machining, the machine tool performs cutting, boring, milling, and other machining operations according to the preset G-code path, ultimately manufacturing precise parts and components.

In summary, CNC machining is a crucial manufacturing technology that enables large-scale, efficient, and high-quality production in the manufacturing industry. With continuous technological advancements, CNC machining technology is constantly evolving, and it will be applied in even more fields in the future.

If you have any projects requiring CNC machining, please send your drawings to this email address for an evaluation and quote: info1@us.cjcncmachining.com

How are CNC machined parts inspected? Before the first CNC machined part is sent to the QA department for inspection, the operator must first conduct a "self-inspection" to check the product's appearance and dimensions and fill in a self-inspection record. The steps are as follows:

1. The operator submits the production work order, drawings, process cards, and self-inspection records along with the product to the QA inspector for specialized inspection. The main items for first-piece inspection include:

a) Checking if the production work order, drawings, process cards, self-inspection records, and product are consistent and without errors.

b) Checking if the sample's appearance meets requirements: no defects, scratches, burrs, dirt, omissions, or deformation.

c) Checking if the materials used in the sample meet the specified requirements.

d) Checking if the actual quality characteristics of the processed first-piece product meet the requirements specified in the drawings or technical documents.

2. After completing the inspection, the QA inspector fills out the outgoing inspection report, affixes a qualified label to the qualified first-piece product, and marks it. This label is kept until the current shift or batch of products is completed (all first-piece products must be retained for comparison with subsequent products to see if any changes occur during the process, and marked with a "√" to indicate that the first-piece inspection has passed).

3. If the first piece inspection fails, the cause must be identified, corrective measures taken, and the fault rectified. The piece must be reprocessed and inspected again until it passes inspection before being designated as a first piece. Major issues must be recorded in the "First Piece Handover Log." If serious anomalies are found (such as discrepancies between the structure and drawings), the quality engineer must be notified and their status tracked for closure.

4. Note: For resubmitted parts, QA must re-inspect and confirm the product according to the first piece requirements and attach reports (including first piece and process inspection reports).

If subsequent projects require CNC machined parts, drawings can be sent to this email address for evaluation and quotation: info1@us.cjcncmachining.com

In recent years, the application of aluminum alloy housings has become increasingly widespread. As we all know, aluminum housings are various types of housings made of aluminum alloy. They are processed from aluminum profiles obtained through the aluminum stretching method used in hardware housings and are widely used in the electronics industry. So what are the advantages of CNC machining of aluminum housings? The following will introduce CNC machining of aluminum housings.

Advantages of CNC machining of aluminum housings:

1. Aluminum profile housings are easy to machine, which is unmatched by other housings. However, aluminum profile housings generally have poor waterproof performance and are not suitable for use in the wild or harsh environments.

2. Aluminum housings are chemically stable, non-magnetic, and recyclable. It is a benign and recyclable metal material.

3. Finished products from CNC machining of aluminum housings are free from metal pollution, non-toxic, and the surface oxide layer contains no volatile metals.

4. The corrosion resistance of CNC machining of aluminum housings makes them unrestricted by office environments.

If you have future projects requiring precision parts machining, please send your drawings to this email address for an evaluation and quote: info1@us.cjcncmachining.com
